Square Drive

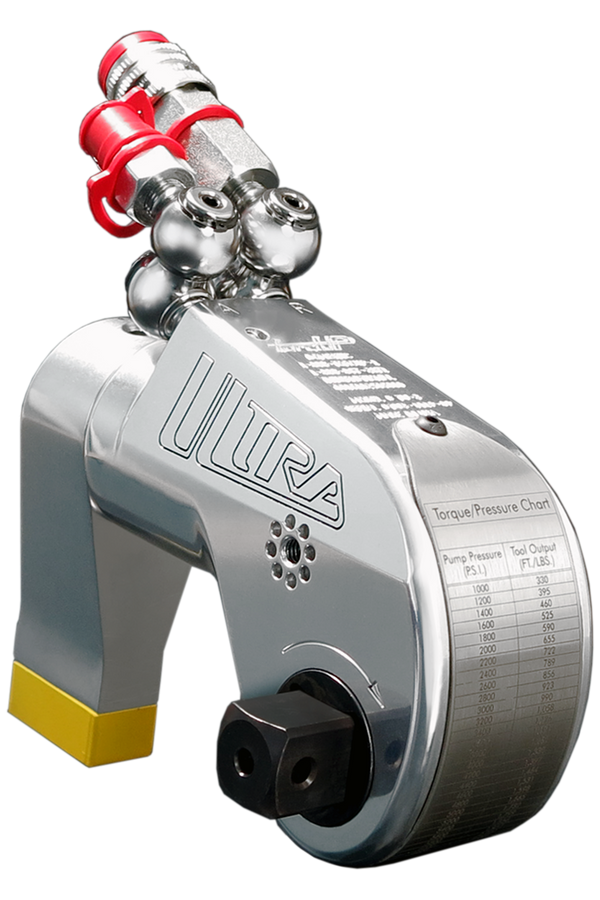

TU Ultra Series
The signature square drive. Mono-Body housing, push-through drive, Vascomax® internals.
▎ Like No Other Wrench in the World
61,510 lbf-ft of
Unbreakable Torque.
The TU Ultra Series Square Drive Hydraulic Torque Wrench. Patented Mono-Body housing machined from a single block of 7075 AQ aluminum. Vascomax®-forged drive train. Calibrated to ±3% in our environmentally controlled ISO/IEC 17025 laboratory. Proudly engineered & manufactured in the USA since 1996.
ISO/IEC 17025 Calibration Lab
Engineered & Made in the USA Since 1996
13-Month Factory Warranty
Together We Torque
▎ Innovation, not guess work
Machined from a
single block.
We are not just a simple bolting tool company that tightens and loosens threaded fasteners. We are a solutions partner to heavy industry on every continent. Patented Mono-Body housing, Vascomax®-forged drive train, calibrated to ±3% in our environmentally controlled ISO/IEC 17025 laboratory.
30%
Stronger
15%
Harder
±3%
Accuracy
Oil, Gas & PetrochemicalPower GenerationWind EnergyConstruction & SteelMarine & ShipbuildingAerospace & Defense
▎ Pick your drive
A solution for every
bolting profile.
Square drive or low-clearance hex — TorcUP covers the full bolting envelope.

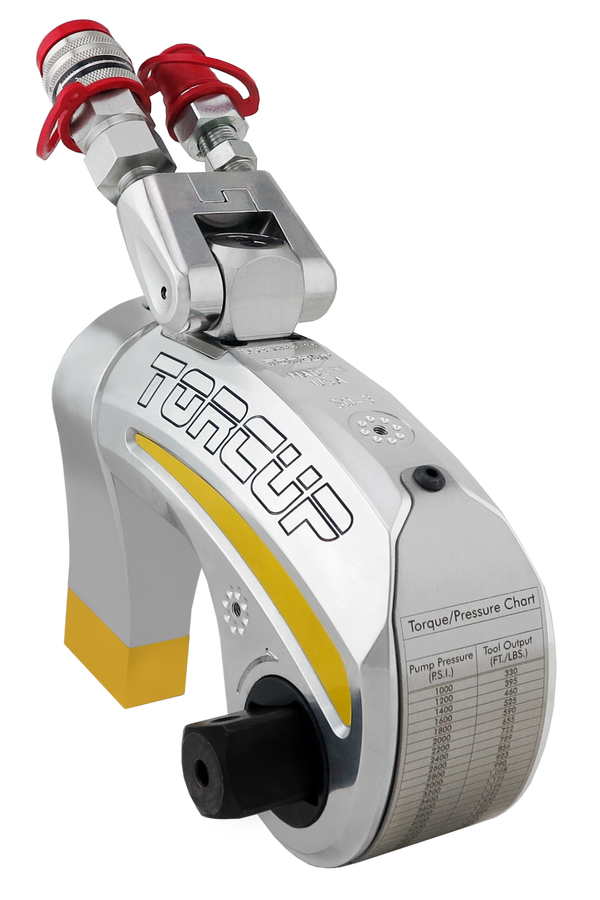

Square Drive · Uni-Swivel
SQ Series
Same TU drive train with a 360°×180° uni-swivel for complex hose routing.

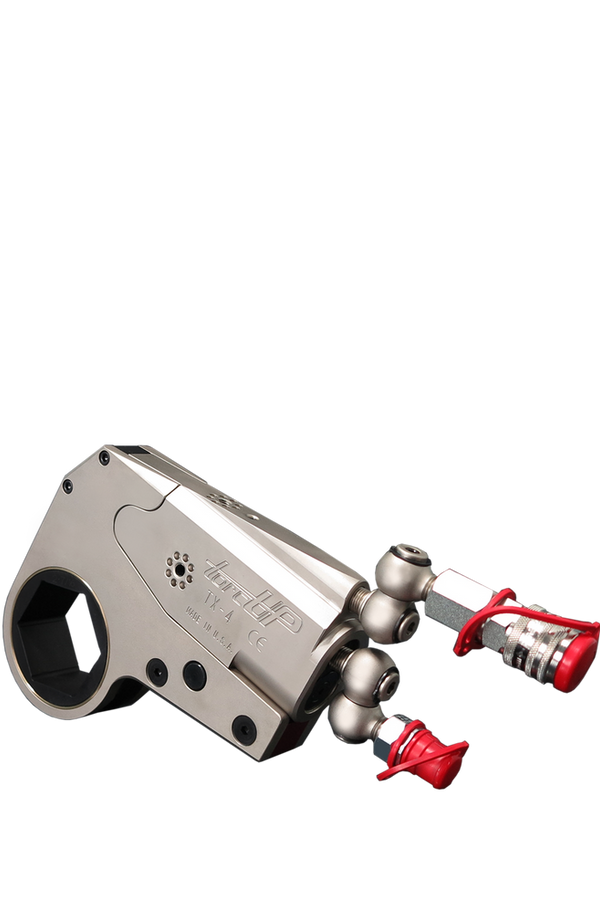

Low-Clearance Hex
TX Series
Truly flat, low-clearance link wrench. Patented peanut piston, slimline link options.

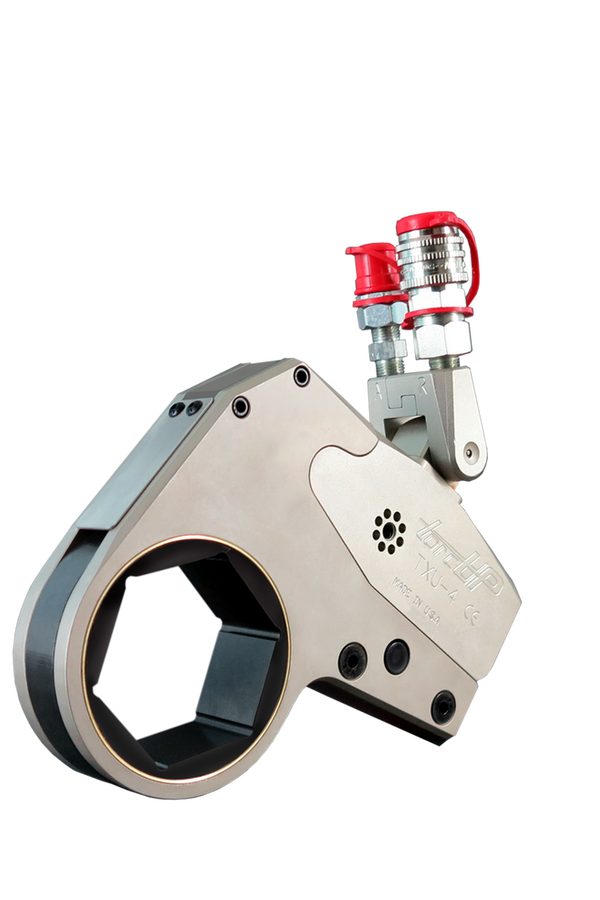

Low-Clearance · Uni-Swivel
TXU Series
TX accuracy with a uni-swivel head. Fully compatible with all TX links.
▎ TU Capacity Chart
Eight models.
One workhorse.
165 to 61,510 lbf-ft. Every unit ships with paper & electronic calibration certificates from our environmentally controlled ISO/IEC 17025 laboratory.
| Model | Drive Size | Torque Range |
|---|---|---|
| TU-2 | 3/4" | 165 – 1,460 lbf-ft |
| TU-3 | 1" | 350 – 3,490 lbf-ft |
| TU-5 | 1-1/2" | 540 – 5,700 lbf-ft |
| TU-7 | 1-1/2" | 720 – 7,260 lbf-ft |
| TU-11 | 1-1/2" | 1,060 – 12,100 lbf-ft |
| TU-21 | 2-1/2" | 2,090 – 22,470 lbf-ft |
| TU-27 | 2-1/2" | 2,660 – 28,510 lbf-ft |
| TU-60 | 2-1/2" | 5,800 – 61,510 lbf-ft |
±3% accuracy · ISO/IEC 17025 calibration certificate included · 13-Month Factory Warranty
▎ Built for the Hardest Jobs on Earth
Your bolt.
Our problem.
Four industries. Four brutal failure modes. One wrench engineered to outlast them all.
±3% · ISO/IEC 17025
Aerospace & Defense
The Problem
Engine test-stand and airframe joints demand audit-grade torque traceability — a 5% deviation grounds the aircraft.
TorcUP Solution
±3% calibrated accuracy with paper & electronic ISO/IEC 17025 certificates on every tool. Vascomax® internals hold tolerance across 10,000+ cycles.
Mono-Body · Sealed boot
Waste Management & Recycling
The Problem
Shredder hammers, baler tie-rods, and conveyor flanges live in dust, grit, and corrosive leachate that destroy aluminum housings.
TorcUP Solution
Patented Mono-Body 7075 AQ aluminum — machined from one block, no weld seams, no fasteners. Sealed boot keeps debris out of the swivel.
61,510 lbf-ft · 27° stroke
Refinery Turnarounds
The Problem
Every hour of unplanned downtime costs up to $500,000. Stuck flange bolts and seized studs blow the shutdown window.
TorcUP Solution
165 to 61,510 lbf-ft across 8 TU Ultra models. 27° drive stroke clears tight flanges. 24–48 hr factory repair turnaround keeps the crew working.
Push-through · Laser scale
Construction & Steel
The Problem
Structural connections and anchor bolts torqued in mud, rain, and freezing wind by rotating crews — operator-induced error wrecks clamp load.
TorcUP Solution
Push-through square drive and no-drip quick-connect couplers cut setup time. Laser-etched scale stays readable after years in the field.
Don't see your application? Our engineering department analyzes bolt size, clamp load, and clearance at no cost.
Spec My Application▎ Direct from the Factory · Ronks, Pennsylvania · USA
Equip your
next turnaround.
Your rep & tools are a call/click away. Speak with a TorcUP application engineer about your bolt size, clamp load target, and clearance constraints — we'll spec the right tool.
Full-service engineering department — application analysis at no cost
Paper & electronic ISO/IEC 17025 calibration certificates with every tool
Worldwide network of representatives, distributors & calibration centers
13-Month Factory Warranty on all TU Ultra, TX, RP, VT & SR Series wrenches
24–48 hour factory repair turnaround · Free repair estimates
